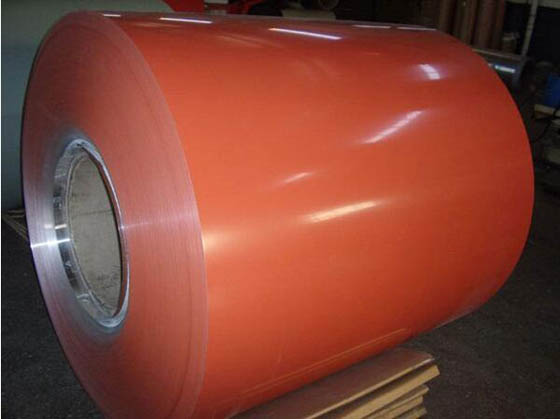

Aluminum color coated sheets/color coated aluminum coil are suitable for printing, advertisements, packaging, roofing, etc. These aluminum color coated sheets/color coated aluminum coil are made available in different color coatings, length, width and thickness. Further, these Aluminum Color Coated Sheets have no cracks, canker, hole, or any other kind of defect which could hamper their quality.
Color coated aluminum is a special coating on the surface of the aluminum plate coloring treatment, due to aluminum gold performance is very stable, not easy to corrosion, surface after special treatment (fluorocarbon coating) can guarantee at least 30 years without fading, and because of the different paint has different functions.
The roller coating process provides our aluminum coil with various colors and patterns,realistic-looking wood and stone texture,and fresh natural beauty.It can enrich cultural connotations of the produce,and inspire the decorative inspiration and artistic imagination,giving users wider personalization options and more beauty.
Specification :
Thickness : 0.02MM ~ 0.60MM .
Width : 1240MM , 1270MM , 1520MM ,1570MM etc .
Color : refer to our standard color catalogue , also can produce according to customers requirements .
Max Diameter : 1200MM
Weight : 2.5 Ton / Coil ; 3 Ton / Coil .
Interior Diameter : 505 MM or 405 MM
Color coated aluminum coil is divided into two categories according to the different coating layer, polyester coating (PE) and fluorocarbon coating (PVDF). Fluorocarbon coating is using fluorine resin coating series referred to as main film forming materials, it is a kind of new coating materials after modification, processing in fluorine resin based on form, its main characteristic is the resin containing a large number of F-C bonds, the bond energy of 485KJ/mol in all chemical bonds called first. Under the action of heat and light (including ultraviolet light), F-C is difficult to break, so it shows the long durability and chemical resistance.
Color coated aluminum for aluminum roofing coating thickness
1.Can be divided into single coating (4 um-20 um); double coated (25 um-28 um); tri-coating (35 um-38 um);
2.The surface of a variety of patterns, has also been a grain of aluminum roll, stone grain aluminum roll, brick pattern, camouflage aluminum roll, cloth, aluminum rolls, etc.
Application of color coated aluminum coil:is mainly used in building decoration materials, household appliances, food packaging (cans), transportation and other fields.
1)Building decoration materials: roof board, ceiling ceiling board, honeycomb board, insulation board, shutter door, shutter Window, aluminum curtain wall plate
2)Materials for household electrical appliances: range hood, refrigerator, air conditioner, refrigerator freezer, etc.
3)Food packaging: top cans, cans pull ring, aerosol spray cover
4)Transportation: the outer shell of the box type truck, the inner wall of the box truck, and the inside of the vehicle.
There are kind of colors to choose from including metallic and special finishes.
camber adhesion impacting resistance
Export Standard Wooden Pallet, with plastic film, waterproof , on fumigation-free wooden Pallet, and strong enough, suitable for sea delivery.
